5' X 7' Bathroom Shower Remodel

Rhino Sketch

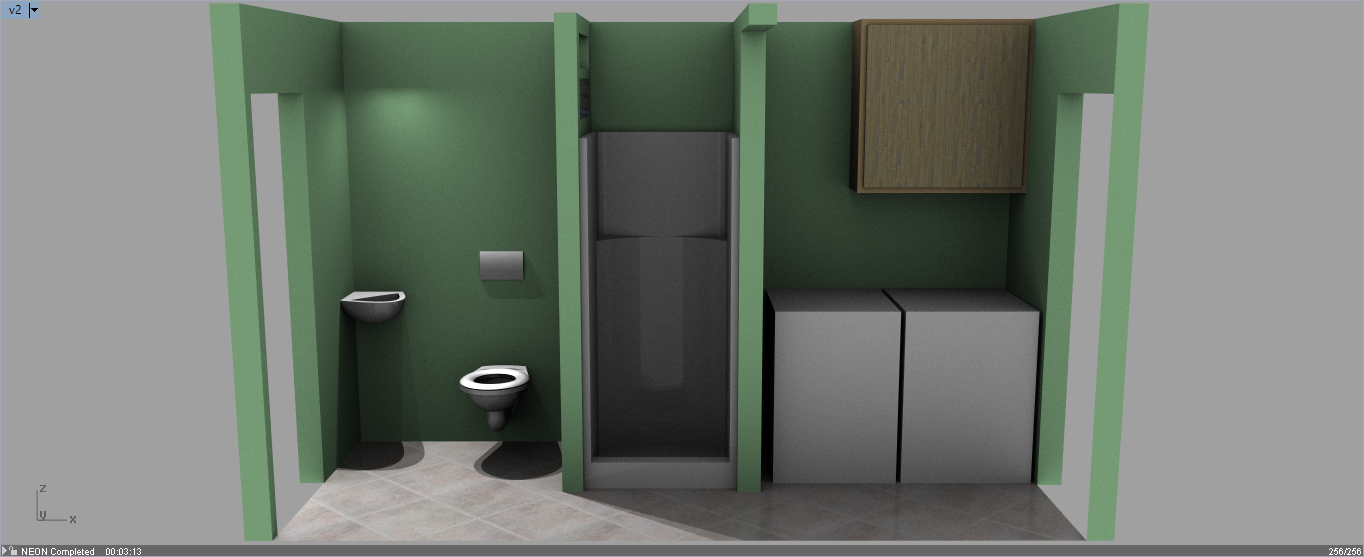

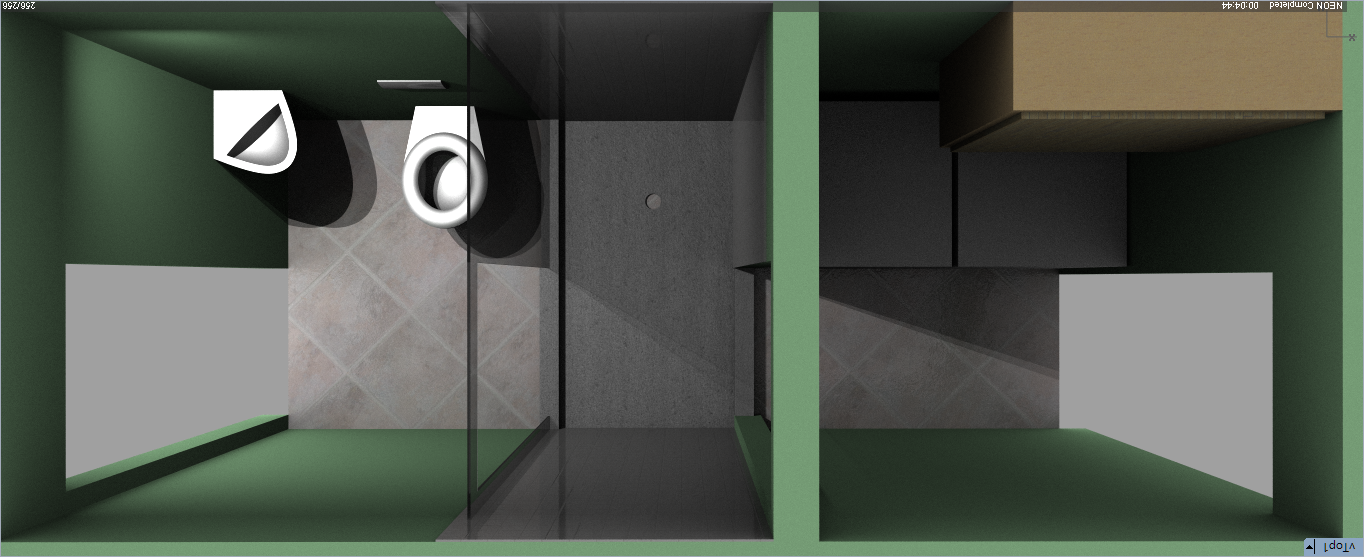

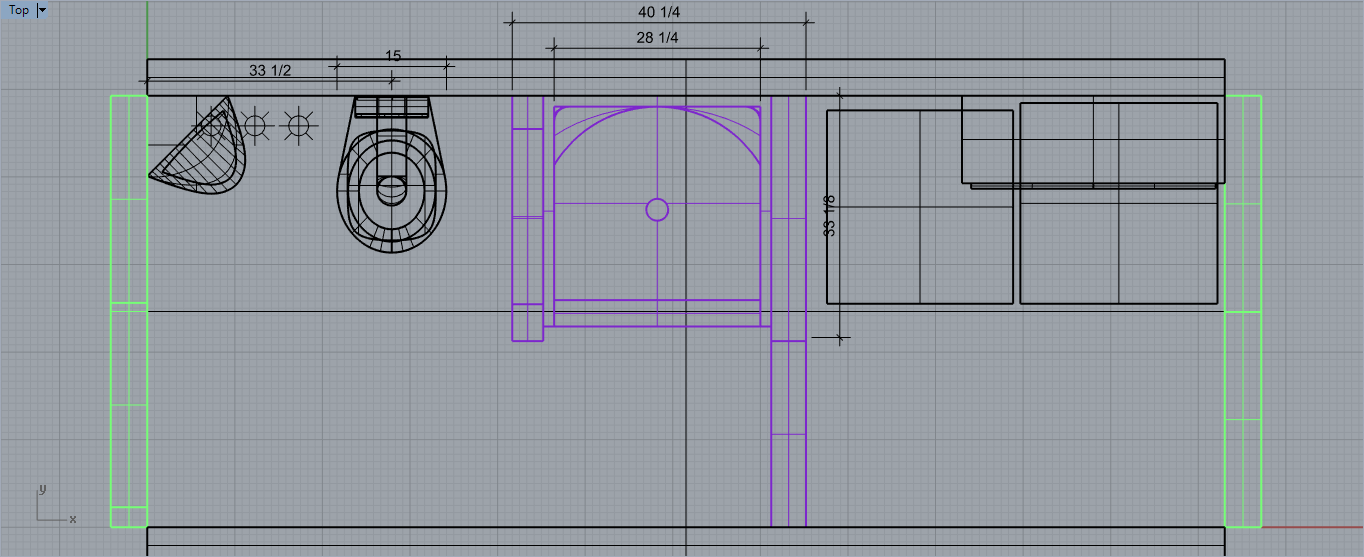

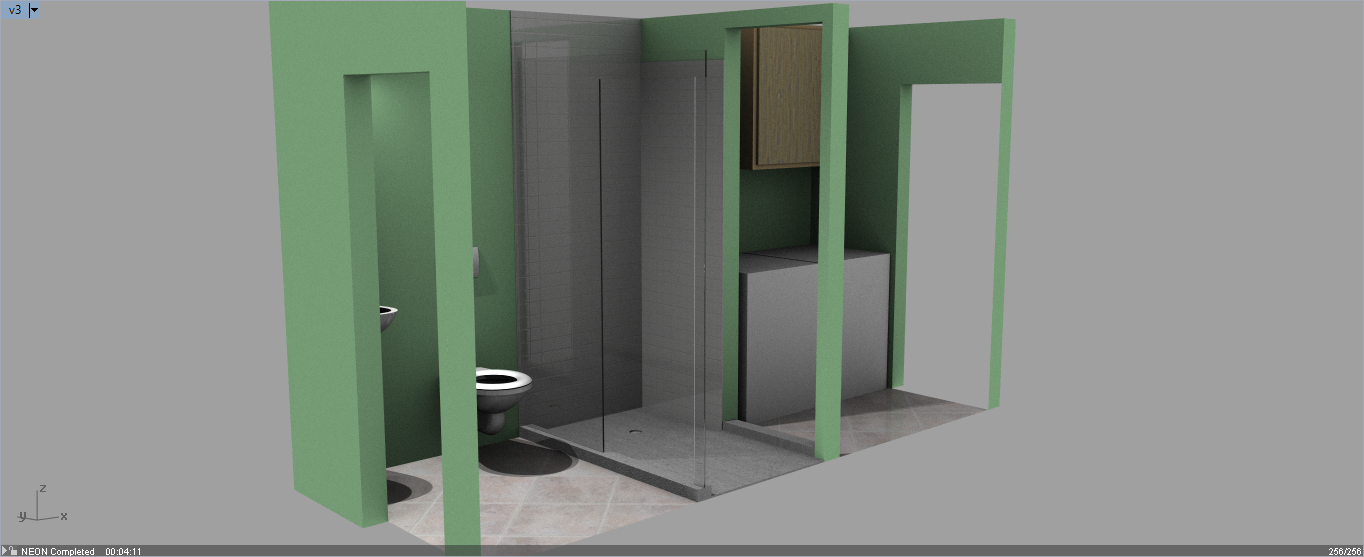

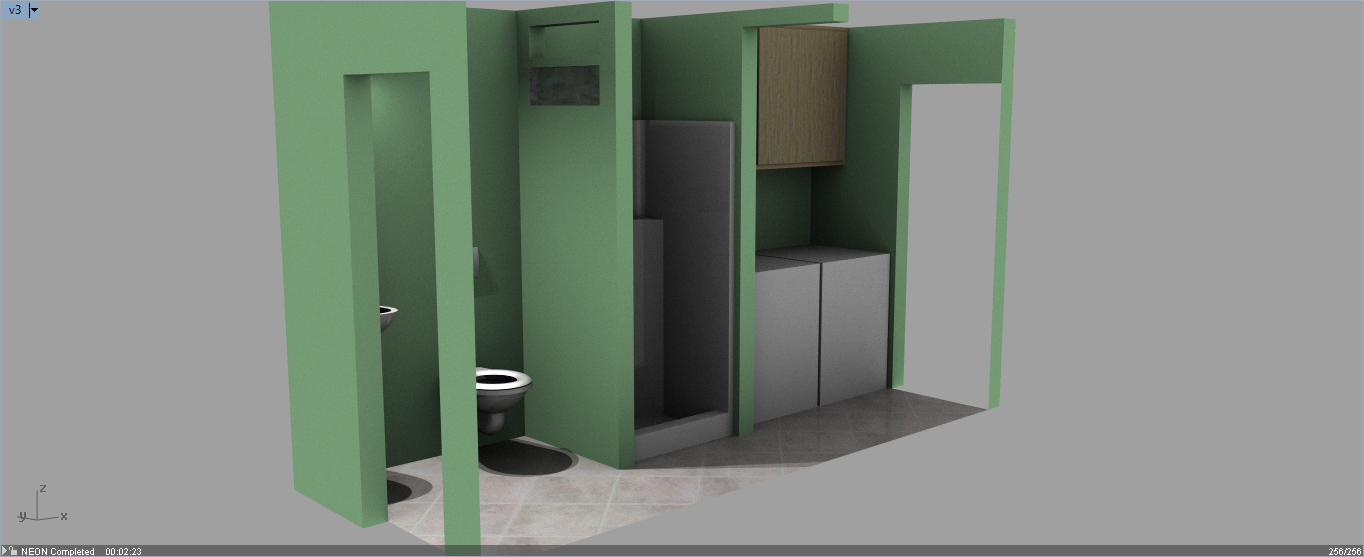

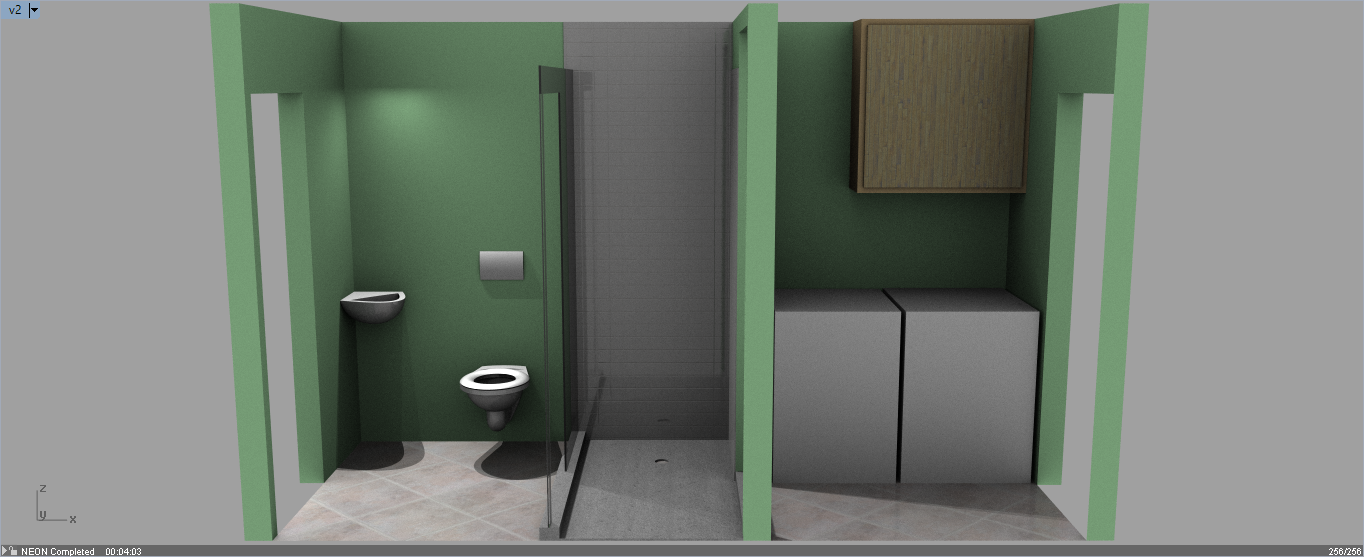

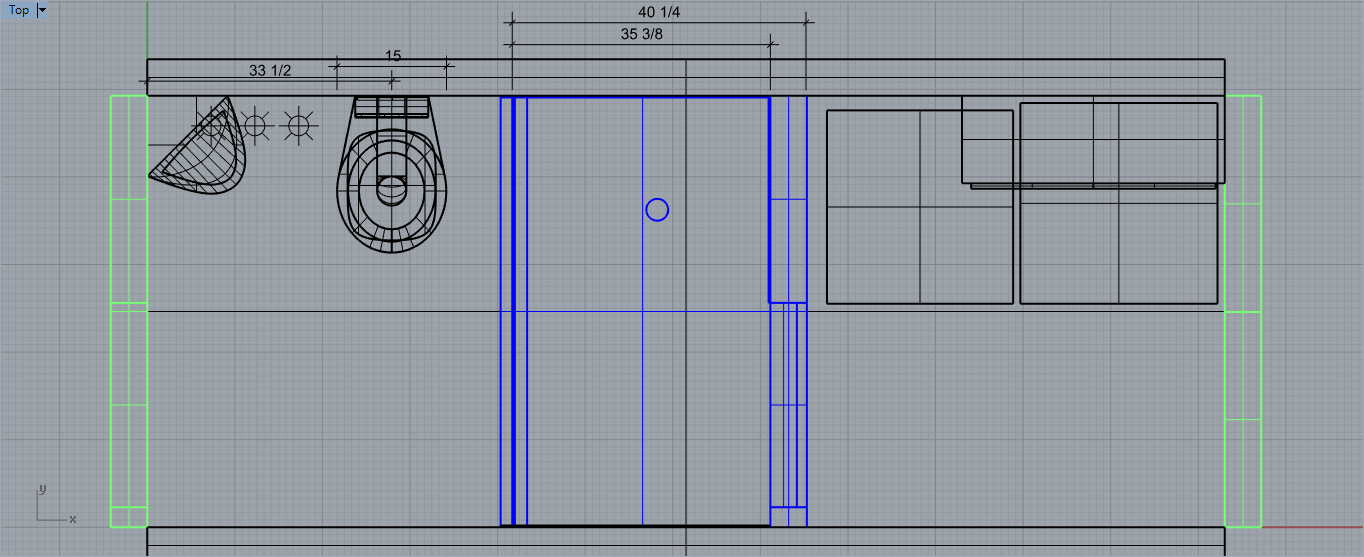

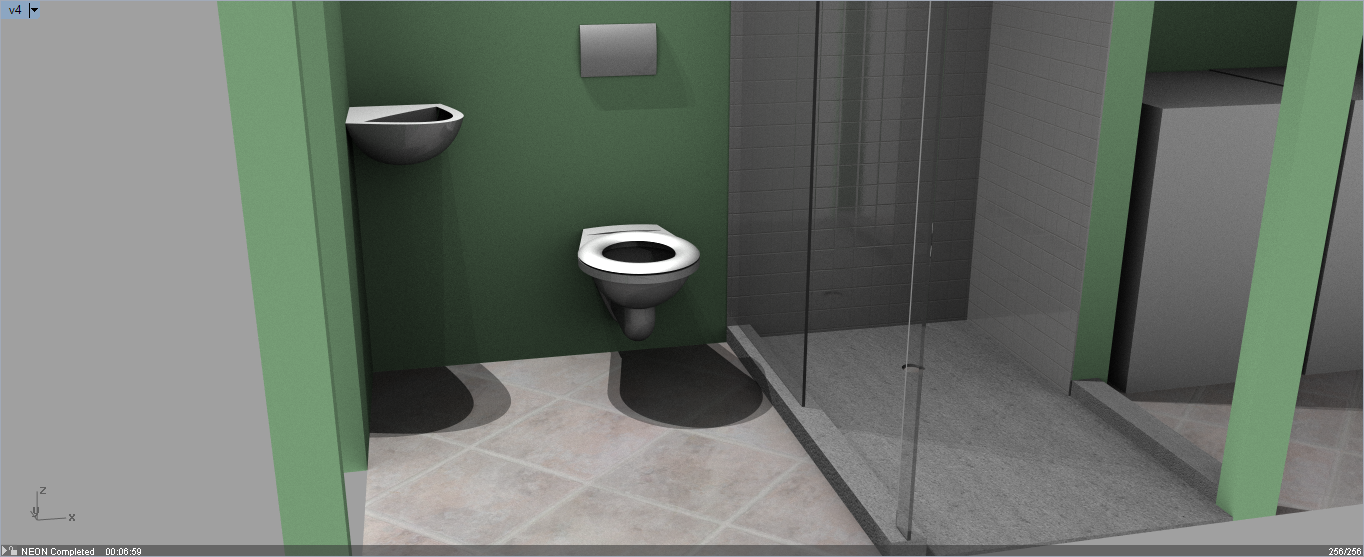

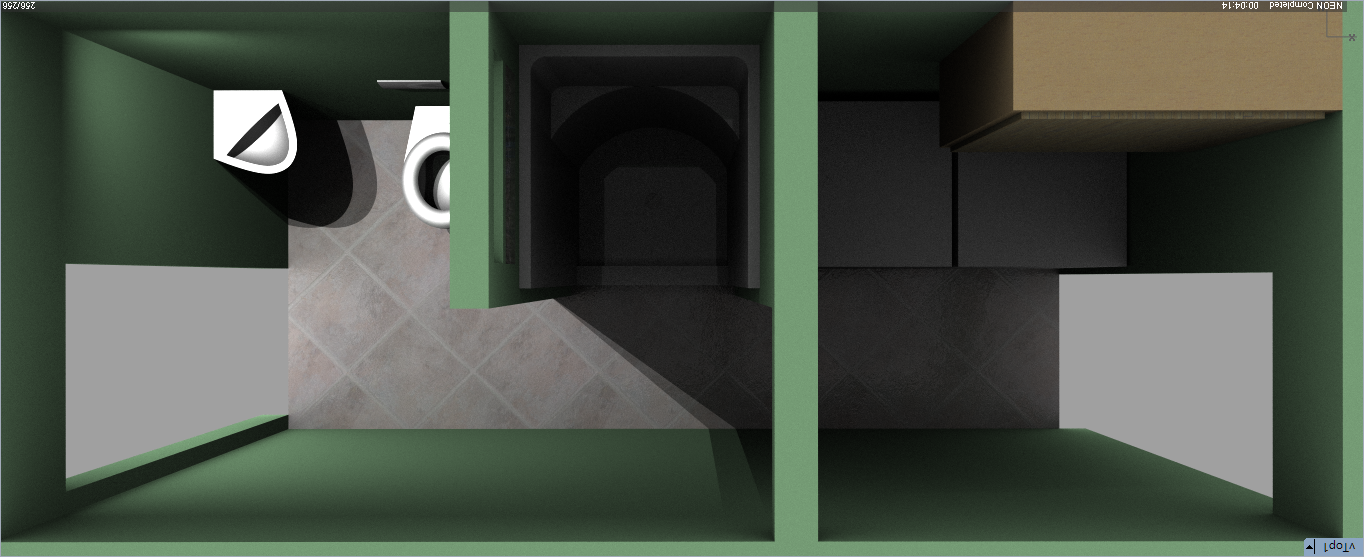

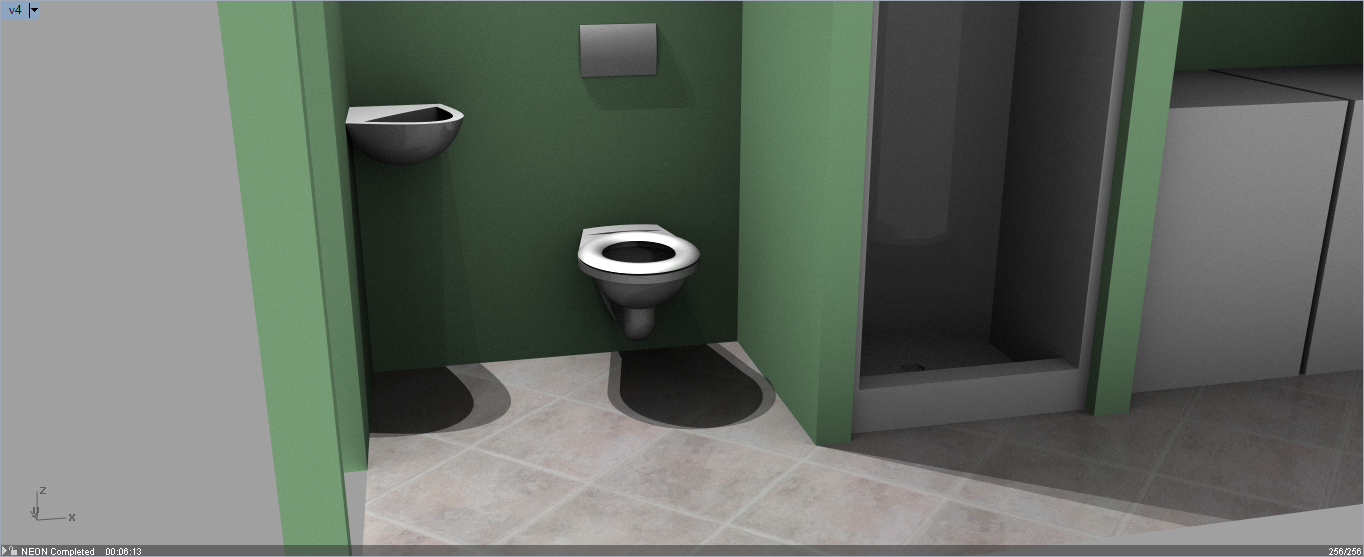

This 5' X 7' bathroom/shower has an adjacent laundry room in a space only five feet wide. The "as is" shower is cramped at 26.5" deep by 28.25" wide, and reduces the passageway to 25.5" wide. The proposed shower spans the room (~5') and gains ~7" of shoulder room (35 3/8" wide/deep) by dropping a conventional wall and thick shower lining and using a wall of glass. The laundry room complicates matters slightly with a second shower door (opaque, not shown), but allows that passageway past the shower to be wider than before.
